Rochester R3T Wireless Transmitter for Transports and Bobtails
发表时间：2019-04-12 来源： 点击次数：1324次
Rochester 于近期发布其新产品-R3T，可用于液位信号无线蓝牙传输，确保手机上可以实时监控储罐液位等。
Application

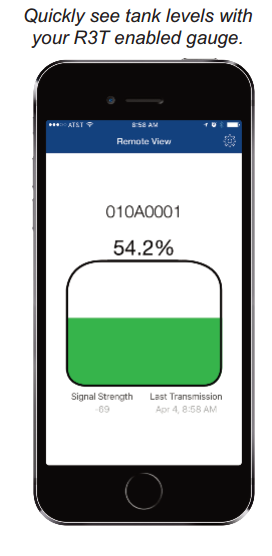

The Rochester R3T Wireless Transmitter provides on-demand digital display of tank levels to hand held devices. Compatible with Rochester RoughRider® Magnetel® & Taylor RoadMaster (built after 2003) 4” R3D® Dials. The Rochester R3T App (available to download in App store. Android version coming soon) displays current tank levels on all Rochester R3T enabled gauges within RF range of handheld device [typically less than 100m (300 ft.)]
General Information & Features
• Powered by 3.3V Lithium Battery (Operational Life of approximately 7 years)
• Includes 6 ft. of module wire for connection to R3D Dial
• Small, compact, and light weight
• Easy set up and installation
• User friendly App
• NEMA 4 rated enclosure
• Open BTLE protocol
• Bluetooth transceiver output power: +4 dBm
• Typical RF Range < 100m (300 ft.)
• FCC, CE Approved
• Operating Temperature: -40°F to 176°F (-40°C to 80°C)
• SAE J1292
• Vibration Test per MIL-STD-810F
• Source code for the R3T App is available under open
source license to Rochester Gauges premium partners,free of charge.
